• Cigarette lighter, on instrument panel
• Headliner, Shale-colored cloth, with matching retainer moldings
• Lighting, dome lamp, reading, backlit instrument panel switches and door handle-activated illuminated entry
• Mirror, inside rearview, manual day/night
• Power outlets, auxiliary, covered, 2 dash-mounted, 12-volt
• Sound system feature, 4-speakers
• Steering wheel, includes theft-deterrent locking feature
• Theft-deterrent system, PASSLock II
• Visors, padded, Shale-colored, driver and passenger side with cloth trim, extenders, pocket on driver side and vanity mirror on passenger side
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder, turn signal on

• Alternator, 105 amps
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, hydroformed
• Rear axle, 4.10 ratio
• Steering, power
• Suspension, front, independent torsion bar, and stabilizer bar
• Suspension, rear, 3-stage springs
• Tire carrier, outside spare, winch-type mounted under frame at rear
• Tools, mechanical jack and wheel wrench located in back of cab

• Brakes, 4-wheel antilock, 4-wheel disc
• Daytime running lamps, includes automatic exterior lamp control

GVWR, 9,900 lbs (4490 kg) ($0)

• includes single rear wheels (STD)

ENGINE, VORTEC 6000 V8 SFI ($0)

• (300 HP [223.8 kW] @ 4400 rpm
• 360 lb.-ft. [486.6 N-m] @ 4000 rpm) (STD)

LICENSE PLATE BRACKET, FRONT ($0)

• (will be forced on orders with ship-to states that require a front license plate)

PICKUP BED, WIDESIDE, BOX ($0)

• (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP ($0)

• includes standard equipment

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER WITH OUTBOARD HEAD RESTRAINTS AND MANUAL RECLINERS ($0)

• (STD)

SKID PLATE PACKAGE ($95)

• includes aluminum front underbody shield starting behind front bumper and running to 1st cross-member
• protecting front underbody
• oil pan
• differential case and transfer case
• frame-mounted shields

AIR CLEANER, HIGH-CAPACITY ($25)

• (Included with (LLY) Engine
• Duramax 6600 Turbo Diesel V8
• (Z82) Trailering equipment
• heavy-duty or (VYU) Snow Plow Prep Package)

SOUND SYSTEM, ETR AM/FM STEREO ($0)

• includes seek-and-scan and digital clock (STD)

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND PASSENGER MANUAL RECLINING ($282)

• center fold-down armrest with storage
• adjustable outboard head restraints and storage pockets on Extended and Crew Cabs Models

SNOW PLOW PREP PACKAGE ($285)

• includes 10-amp power for backup and roof emergency light
• 145-amp alternator
• high-flow front bumper
• forward lamp wiring harness
• 1.65" (42 mm) access hole with grommet in front of dash panel
• instrument panel jumper wiring harness for electric trailer brake controller
• includes (K47) Air cleaner
• high capacity and (NZZ) Skid Plate Package

TRANSMISSION, 4-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED WITH OVERDRIVE, TOW/HAUL MODE ($0)

• and (KNP) Cooling
• external transmission oil cooler (STD)

POWER WINDOWS AND MIRRORS ($738)

• Provides power driver and passenger windows on a base trim level
• includes SEO (5M1) LH and RH outside power adjustable
• manual folding
• non heated mirrors and up level door panels. The mirror head is the same size and configuration as the base power mirror on LS decor

PAINT, SOLID ($0)

• (STD)

• 4.10 Rear Axle Ratio
• 16" x 7.0" Steel Wheels
• HD Handling/Trailering Suspension Package
• Electronic Cruise Control w/Set & Resume Speed
• Chrome Rear Bumper w/Step Pad
• Solar-Ray Deep Tinted Glass
• Heavy-Duty Rear Automatic Locking Differential
• External Transmission Oil Cooler
• Front beverage holders
• Variably intermittent wipers
• Tilt steering wheel
• Rear step bumper
• Power steering
• Passenger vanity mirror
• Passenger door bin
• Passenger cancellable airbag
• Fully automatic headlights
• Front wheel independent suspension
• Front dual zone A/C
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Bumpers: chrome
• AM/FM radio
• ABS brakes
• Voltmeter
• Tachometer
• Air Conditioning
• 4-Wheel Disc Brakes

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): 13.32
• Total Cooling System Capacity (qts): 16.36
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6500
• Curb Weight - Front (lbs): 3345
• Curb Weight - Rear (lbs): 2688
• Gross Vehicle Weight Rating Cap (lbs): 9,900
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 7500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 1000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9600
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1440
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9600
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2400
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 3-Stage Springs
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6500
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 36
• Shock Absorber Diameter - Rear (mm): 36
• Stabilizer Bar Diameter - Front (in): 1.25
• Brakes
• Brake Type: Pwr
• Brake ABS System: Four-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 1.2
• Tires
• Front Tire Order Code: QER
• Rear Tire Order Code: QER
• Spare Tire Order Code: QER
• Front Tire Size: LT265/75R16
• Rear Tire Size: LT265/75R16
• Spare Tire Size: LT265/75R16
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 7.0
• Rear Wheel Size (in): 16 x 7.0
• Spare Wheel Size (in): 16 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 24.1
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 50.8
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 157.5
• Length, Overall w/o rear bumper (in): 246.6
• Width, Max w/o mirrors (in): 96.1
• Height, Overall (in): 76.7
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 52.1
• Front Bumper to Back of Cab (in): 138.6
• Cab to Axle (in): 55.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 35.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.6
• Ground Clearance, Rear (in): 13.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.6
• Cargo Box Width @ Top, Rear (in): 61.9
• Cargo Box Width @ Floor (in): 64.8
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.5
• Tailgate Width (in): 61.9
• Cargo Volume (ft³): 73.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 38.4
• Second Leg Room (in): 33.7
• Second Shoulder Room (in): 66.3
• Second Hip Room (in): 61.5
• Summary

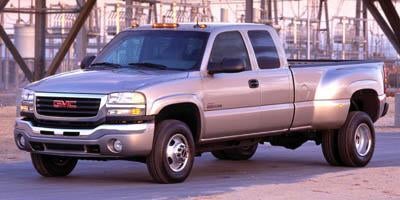

• Vehicle Name: GMC Sierra 3500
• Body Style: Ext Cab 8' Wideside
• Body Code: E63
